Residue left on a belt, roller or transfer surface is almost never an isolated issue. At first it may look like simple dirt: dust, fragments, fibres, chips, granules, food residues or abrasive particles. After a few cycles, however, it becomes a process variable. It changes friction, alters contact with the product, soils the following pieces, forces operators to intervene with the machine stopped, or generates defects that are only detected downstream.

Manual cleaning can work on slow or discontinuous cycles, but it loses effectiveness when the line runs continuously. Every stop affects productivity, safety, staffing and batch consistency. If the residue always forms in the same point, or if the moving surface passes through several stages of the machine, it is worth asking whether removal should take place during the cycle, with a component designed to work together with the line.

Understanding what kind of residue is forming

Not all residues require the same action. Light dust must be intercepted before it disperses, but it does not necessarily have to be scraped forcefully. A sticky deposit, on the other hand, requires more decisive contact or a combination with liquids, air or extraction systems. A chip or rigid particle can be moved easily, but if it remains trapped it may scratch the surface. Fibres and filaments can wrap, accumulate or form mats if the discharge direction has not been planned.

The nature of the residue must be read together with the surface on which it settles. Sheet metal, a conveyor belt, a rubber-coated roller, a plastic bed or a painted surface all tolerate different types of contact. Speed also changes the behaviour: at low speed the residue can be brushed away with a relatively stable action; at higher speeds, balancing, constant pressure, risk of vibration and the direction in which dirt is removed become important.

Why rotation helps in continuous lines

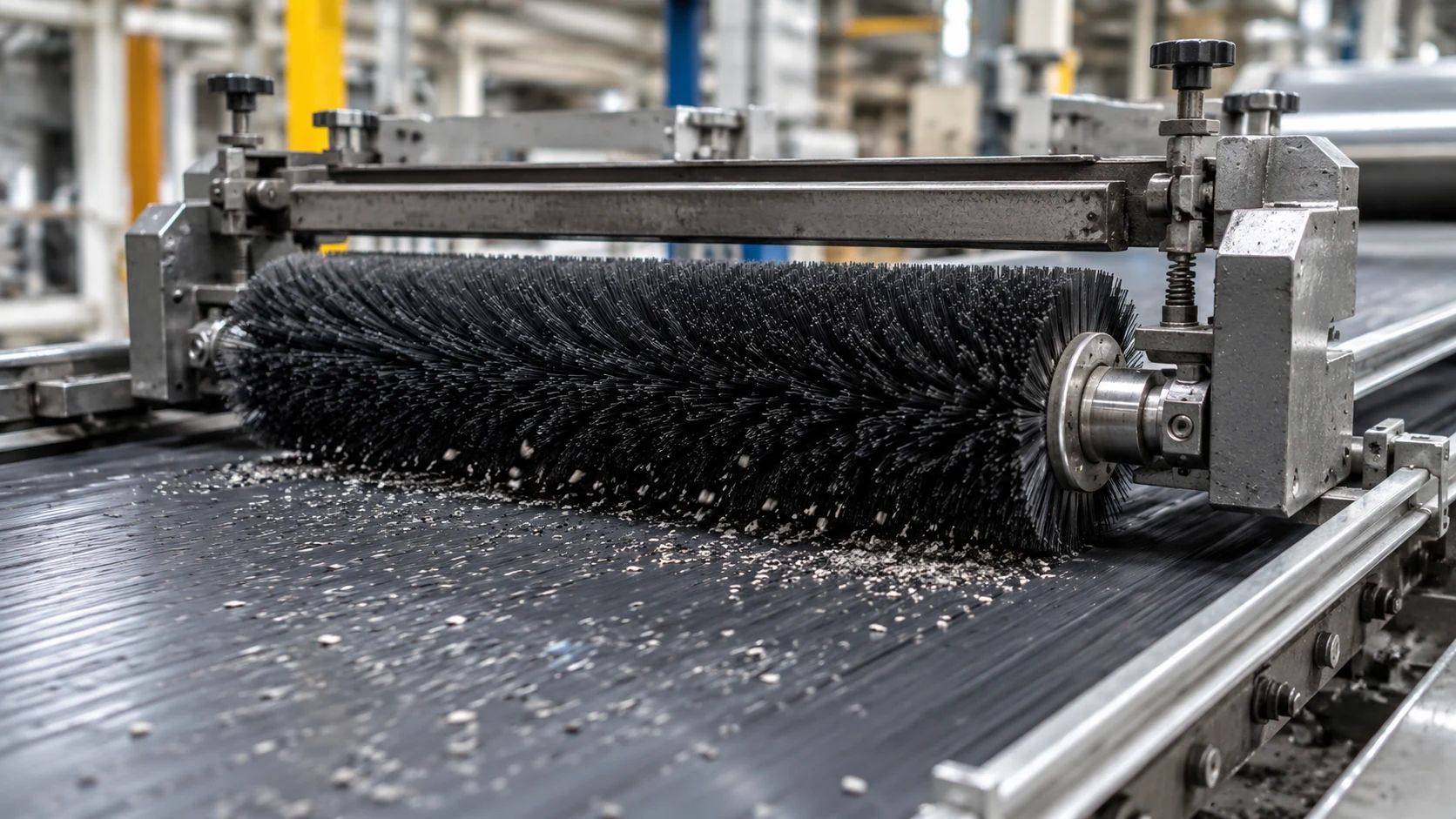

A cylindrical brush works naturally on moving surfaces because it turns residue removal into a repeated and continuous action. Contact does not occur on a fixed edge, but along a rotating surface that can intercept the deposit, detach it and direct it towards a discharge area. This makes it possible to intervene without interrupting the cycle, provided the brush is sized for the rhythm of the machine and for the type of material to be removed.

Rotation alone, however, is not enough. If the brush rotates too slowly, it may simply carry the residue along without removing it. If it rotates too fast, it can lift dust, project particles or wear both the filaments and the treated surface more quickly. The direction of rotation must also be decided: in some cases it is better to work against the movement of the surface; in others it is preferable to follow the flow and move the material in a more controlled way.

Density, filament and roller geometry

Cylindrical technical brushes can be designed with natural, synthetic or metallic filaments and with different tuft arrangements, also depending on the type of transport, washing, polishing or removal required by the line. Filament density determines contact continuity. A very dense brush can work well on fine powders or evenly distributed residues; a more open arrangement can favour the discharge of larger particles and reduce clogging.

The filament pattern can also have a precise function. A helical arrangement can help convey residue towards one side, prevent accumulation at the centre or guide dirt towards a collection point. Without this logic, the brush may detach the material correctly but leave it where it creates a new problem. Roller geometry must therefore be designed not only to clean, but also to manage what has been removed.

The risk of adjustments made only on the shop floor

Many problems arise when the brush is adjusted by trial and error. Pressure is increased because the residue does not come away, then excessive wear appears. Speed is changed, but the deposit ends up in an unintended area. The filament is replaced with a stiffer one, but marks appear on the surface. These corrections can solve one symptom and create a different problem, especially when the line works on several shifts or with variable formats.

Correct adjustment must have clear margins. Pressure, distance, speed and inclination must be repeatable, not left to the operator’s eye. If the brush has a stable role in the process, its wear must also be monitored: a roller that is efficient at the beginning of its life can gradually lose cleaning capacity, changing quality without causing an immediate fault. The result is a slow drift, often recognised only when rejects have already increased.

When to integrate cleaning into the cycle

A cylindrical brush is especially useful when the residue is recurring, localised and compatible with mechanical removal during movement. It is less suitable when the deposit requires chemical contact time, immersion, drying or dedicated extraction that cannot be integrated at the working point. In many cases the best solution is not a more aggressive brush, but a brush correctly combined with guards, conveyors, collection or extraction.

Before choosing the component, it is useful to define a few data points: type of residue, quantity produced per cycle, surface to be treated, speed, temperature, humidity, presence of oils or detergents, available space, cleaning frequency of the brush and consequences of residue not being removed. Only in this way does the brush stop being a generic accessory and become a controlled point of the line. When removal takes place at the right moment and with the right contact, the machine works with fewer stops, fewer manual interventions and more stable quality over time.

Brush position and discharge management

The installation point is often as decisive as the type of brush. If the component works too close to the area where the residue is generated, it may intercept material that is still unstable or wet; if it works too far away, the deposit may already have been compacted by the line or transferred to other parts. In many cases it is useful to observe the complete path of the residue: where it originates, where it accumulates, where it falls naturally and where it is instead dragged by the movement of the machine.

Discharge must also be designed. A brush that cleans well but leaves material under the belt, near a bearing or in a hard-to-reach area is only moving the problem. Guards, channels, extraction, collection and accessibility must therefore be assessed together with the roller. A good solution is not the one that detaches the greatest amount of residue in absolute terms, but the one that keeps the surface clean without creating new accumulations elsewhere in the machine.

When the line works with different products, controlled adjustment margins may be useful. Not all residues have the same weight, adhesion or size. A brush that is too specialised may be perfect for one product and inadequate for another; one that is too generic may fail to solve either case. The choice must therefore start from the prevailing residue, while also considering realistic production variations.

The required level of operator safety must also be considered. If the residue forces frequent manual cleaning close to moving parts, the issue is not only productive. Integrating controlled removal can reduce improvised interventions, unplanned openings and adjustments made in awkward conditions. A correctly installed brush does not eliminate maintenance, but it can move it into predictable moments and simpler procedures.
