In a production line, damage to a delicate sheet often occurs before the actual processing stage. A support point that is too rigid, uncontrolled dragging, a particle trapped between the workpiece and the surface, or a poorly managed change of direction can turn a simple handling phase into a source of rejects. Glass, laminates, painted panels, thin components, plastic sheets and already finished surfaces do not all tolerate the same type of contact. The issue is not only supporting the weight of the part, but allowing it to slide, guiding it or stopping it without concentrating pressure in just a few points.

For this reason, the support surface cannot be treated as a neutral element of the machine. If the workpiece is fragile, polished, painted or otherwise sensitive to marking, the surface that supports it becomes part of the process. It can reduce friction and micro-impacts, but it can also introduce instability if it is not designed consistently with format, weight, speed and direction of movement. An effective solution has to keep mechanical support, surface protection and the dynamic behavior of the material together.

Damage does not depend only on the hardness of the surface

The first temptation is to think only in terms of contact softness. In reality, a softer surface is not always a safer surface. If the material gives way too much, the workpiece may sink, oscillate or encounter variable resistance along its path. If, on the other hand, the support is too rigid, any impurity or difference in height can leave marks, cracks or localized abrasions. The right balance lies in the relationship between filament deformability, density, useful height, inclination and regularity of the support surface.

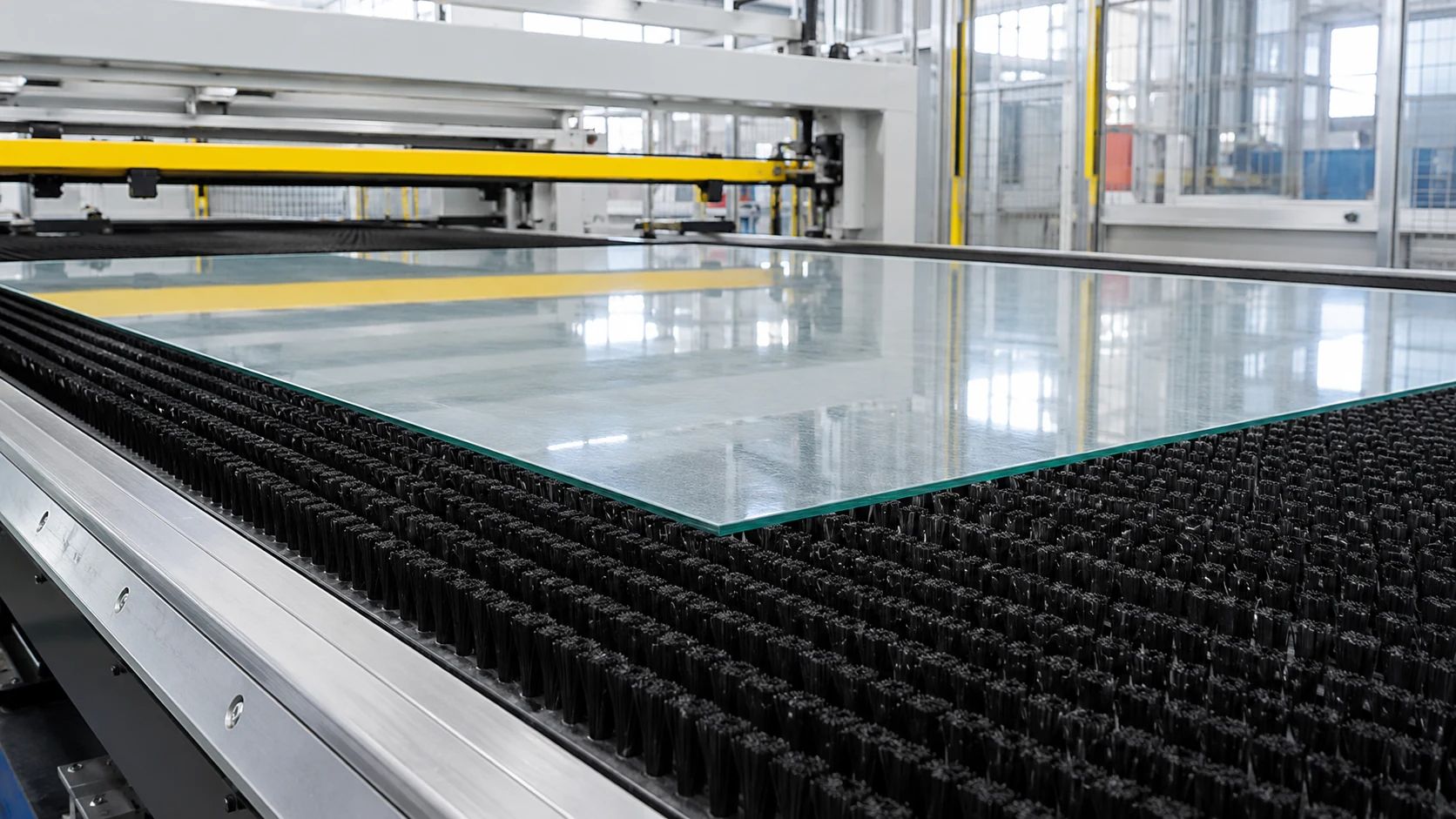

Load distribution is just as important. A sheet resting on a few rigid points may seem stable while it is stationary, but become critical when it starts moving or when it is pushed against a stop. A brush table works differently: it multiplies the points of contact and allows the part to find a more distributed support. This does not remove the need for a correct load-bearing structure, but it reduces the risk that the entire weight is discharged onto an edge, a guide or a limited area.

Filaments, inclination and density change sliding behavior

The choice of filaments is not only a matter of material. Diameter matters, free length matters, and so does the way the tufts are arranged. Thinner filaments can offer a more delicate contact, but if they are too weak for the weight of the workpiece they cannot maintain the support function. Stronger filaments improve load capacity, but they can become too aggressive on sensitive surfaces. Density helps distribute the load, but excessive density can increase friction or retain residues that are then dragged under the part.

Inclination is another decisive parameter. Filaments perpendicular to the support react differently from filaments oriented along the feed direction. In some cases, inclination can favor sliding in one direction and resist the return of the workpiece; in others, it can help guide the material slightly, without relying on side elements that are too invasive. The geometry of the table, therefore, has to be considered together with the real movement: loading, unloading, manual pushing, automatic transport, rotation or temporary accumulation.

When the brush table becomes a technical solution

A brush table is useful when the product must be supported without undergoing the typical behavior of a rigid surface. flat technical brushes make it possible to build support surfaces with polygonal shapes, materials and filament inclinations adapted to the process, and become particularly interesting when the part must slide without scratches, be temporarily held or move forward with controlled friction. Their use is natural in lines where contact with the product is not accessory, but affects quality, rejects and production continuity.

Design, however, has to start from the workpiece, not from the brush. A thin glass sheet does not raise the same problems as a painted wooden panel, a sheet-metal part protected by film, a freshly molded plastic component or a semi-finished part that is still warm. Weight, fragility, scratch tolerance, presence of dust, direction of movement and cleaning frequency of the table all change. A solution that appears similar can therefore perform well in one department and poorly in another.

Residues, cleaning and maintenance of the table

The support surface must also remain clean. On delicate surfaces, a residue trapped between filaments and workpiece can become more damaging than the support itself. Abrasive powders, chips, packaging fragments, drops of liquid or processing residues can alter sliding and transfer to the product surface. For this reason, filament density and arrangement also have to be evaluated according to the table’s ability not to retain excessive dirt and to be cleaned within timeframes compatible with production.

Accessibility is part of the project. A brush installed in a hard-to-reach point may work well during the first cycles and become problematic as soon as residues begin to accumulate. The fixing system also matters: if replacement takes too long, maintenance will be postponed; if the table consists of several elements, discontinuities that create steps or differences in stiffness must be avoided. Contact quality therefore also depends on how easily the component remains in the expected condition.

Designing contact as part of the line

The safest way to choose the table is to collect a few data points before production: dimensions and weight of the sheet, surface finish, feed speed, direction of movement, any lateral thrusts, presence of liquids or powders, temperatures, frequency of format change and cleaning method. These elements help define filament material, density, height, inclination, support shape and fixing system.

When these parameters are consistent, the table does more than prevent scratches. It can make feeding more stable, reduce micro-impacts, simplify the operator’s work, protect the workpiece during temporary accumulation and reduce rejects caused by improper contact. In a well-designed industrial line, support is not a passive surface: it is a component that has to work with the product, the machine and the production rhythm.

Useful data before defining the brush table

The most useful test is not simply checking whether the sheet slides without marks for a few minutes. It is necessary to observe what happens when rhythm, format and table cleanliness change. A component that performs well on an empty line can behave differently with closely spaced loads, heavier parts or residues distributed among the filaments. For this reason, the definition phase should include real samples, realistic working conditions and a check of behavior after a significant number of passages, not only at first contact.

It is also useful to distinguish between protection and guidance. In some applications, the table only has to support; in others, it has to slightly orient the workpiece, prevent it from moving backward or reduce lateral vibration. These functions require different filaments and inclinations. When they are defined in advance, the brush can be designed as part of the line movement. When they emerge later, the component is often corrected with mechanical adjustments that do not truly solve the cause of the problem.

One last aspect concerns the relationship between support and the following process. If the sheet has to be painted, bonded, optically inspected or packed, the table must not introduce contamination, micro-marks or electrostatic charges that will become visible only afterward. Contact evaluation should therefore extend beyond the section where the brush is installed: what happens on the support surface may appear further down the line, when correcting the defect is much more expensive.
