When access is the real constraint

In the internal cleaning of tubes, holes and cavities, the main problem is not always the type of dirt. Very often it is access. The area to be reached may be narrow, deep, blind, curved, interrupted by edges or connected to passages with different diameters. In these cases, an external brush, an air jet or a simple washing operation may not be enough, because they do not guarantee contact at the points where the residue remains attached.

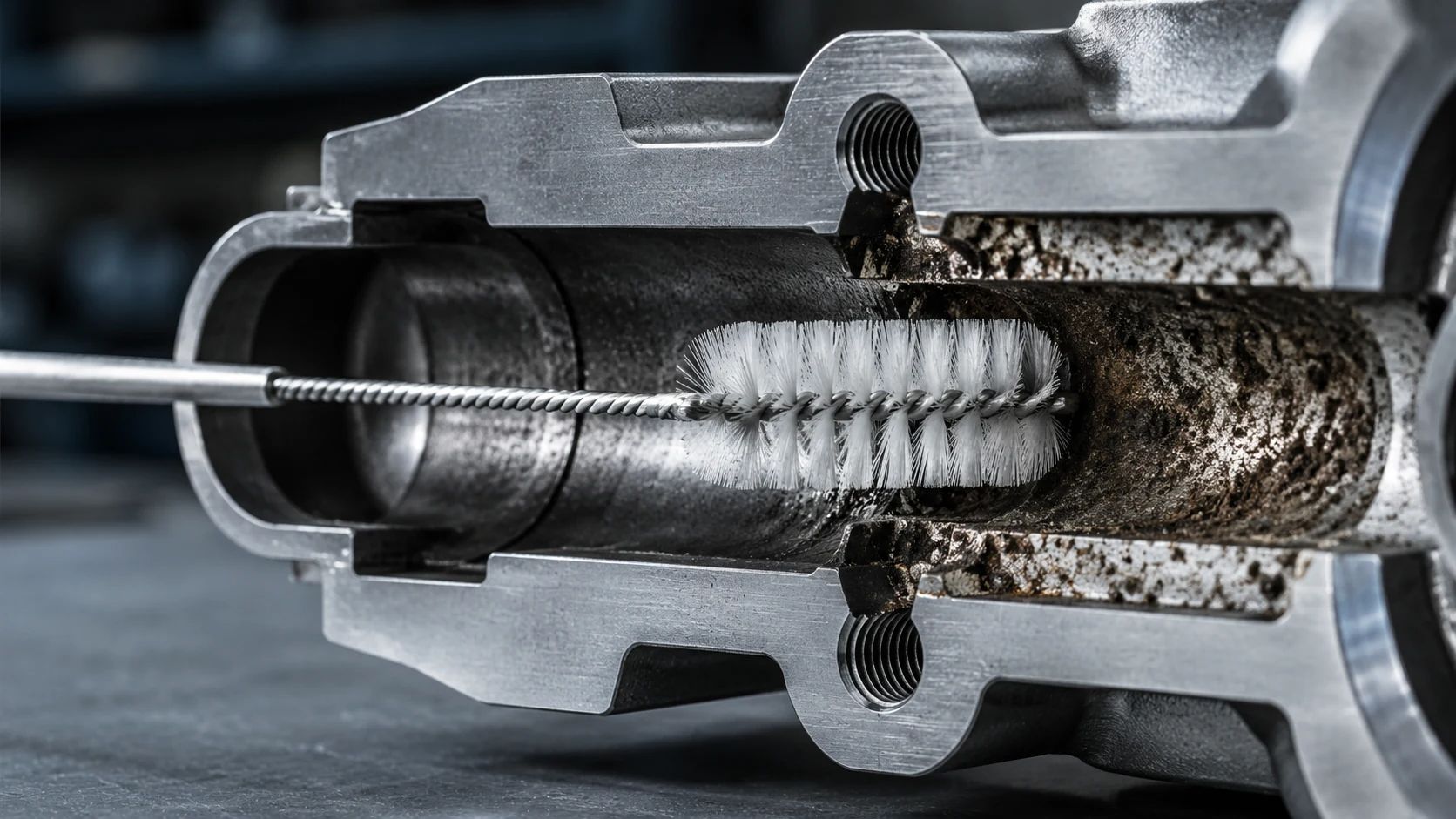

A tube brush is useful precisely when the workpiece imposes a difficult geometry on the operation. The component must enter the cavity, maintain enough rigidity not to bend out of trajectory, but also enough flexibility to follow the hole or internal profile. If the diameter is wrong, the tube brush does not work: too small and it only brushes the surface; too large and it jams, wears out or risks damaging the part. The correct choice therefore starts from the internal shape to be treated, not only from the residue to be removed.

Understand the workpiece before choosing the fiber

Before choosing material, density or filament length, it is necessary to understand the workpiece. Useful diameter, depth, presence of curves, internal roughness, materials, tolerances and insertion direction determine the type of tube brush that can actually be used. A through hole allows different handling from a blind hole; a cylindrical cavity is simpler than a shaped profile; a fragile surface requires a different contact from a rough metal surface or from a duct intended for later operations.

The function of the cleaning operation also matters. Removing chips, dust, dry residues, lubricant, light scale or process material is not the same thing. In some cases a stronger mechanical action is required; in others, it is more important to distribute a liquid, collect particles or prepare the surface for the next step. The same nominal diameter can require very different tube brushes if the function changes.

Useful diameter, length and core rigidity

The diameter of the tube brush must be selected by considering the actual diameter of the cavity and the necessary compression of the filaments. The value does not automatically coincide with the size of the hole. A slight oversize is useful when contact must be guaranteed, but compression must not become excessive. If the tube brush enters with too much force, the operation becomes unstable: wear increases, machine effort rises and the risk of blocking grows.

The useful length must allow the internal area to be reached without losing control. A tube brush that is too short does not get where it is needed; one that is too long can bend, vibrate or work imprecisely. The metal core is therefore decisive. It must transmit movement, support the filaments and maintain a coherent trajectory. In industrial tube brushes, the combination of core, fiber and geometry is what allows the component to adapt to real cavities and not only to a theoretical hole.

Cleaning, finishing or distribution: different functions

The word cleaning covers very different operations. In one line it may mean removing dust before assembly; in another, eliminating machining residues; in another still, preparing an internal surface. Each function changes the choice of filament. For dry and light residues, a fiber capable of intercepting and drawing the material out may be needed; for adhering residues, more mechanical energy is required; for the distribution of liquids, the brush must be able to hold and release in a controlled way.

Internal finishing requires even more caution. If the part must maintain a precise roughness, a fiber that is too aggressive can alter the surface. If the residue is critical for final quality, however, a contact that is too soft is not enough. The choice must therefore connect the action of the tube brush to the required result: not simply “clean” or “dirty”, but a surface ready for the next process step.

Materials and compatibility with the process

The filament material must be compatible with the environment, temperature, chemicals and nature of the workpiece. Synthetic, natural or metal fibers can behave very differently in the presence of liquids, solvents, abrasives or heat. The ability to retain residues must also be assessed: a fiber that collects well may require more frequent cleaning or replacement; a more open fiber discharges more easily, but may reduce effectiveness on fine particles.

The metal support must withstand stress without releasing fragments or deforming. In automatic applications, the way the tube brush is fixed and moved also has to be considered. If the attachment is not stable, the component may work off-axis. If replacement is complicated, maintenance takes longer than necessary.

Automation, manual use and repeatability of the pass

The same tube brush can behave differently when used manually or integrated into a machine. In manual use, the operator perceives resistance, blocking points and dirtier areas, and can correct inclination or force. In an automatic system these corrections do not exist, or they must be provided for by the machine. For this reason, a tube brush intended for an automated station requires more controlled margins: it must enter without jamming, always work in the same area and come out without dragging residues where they should not arrive.

Repeatability also depends on how the workpiece is presented. If the cavity is not always aligned, if the hole tolerance varies or if the component arrives with residues distributed unevenly, the tube brush must have enough capacity to adapt. A solution that is too rigid may be precise only in theory; one that is too soft may not reach the critical area. The balance between mechanical guidance and component flexibility is one of the most important points.

In real production cycles it is also necessary to consider what happens to the removed residue. If it is pulled out and collected, the system remains clean; if it stays at the hole entrance or falls into a sensitive area of the machine, the problem has merely shifted. The geometry of the tube brush must therefore be read together with the flow of the residue: where it accumulates, how it is evacuated, how often it must be removed and whether it can contaminate the next workpiece.

Before the final choice, it is also advisable to define the required level of cleaning. It is not always necessary to remove every visible trace: in some processes it is enough to clear the passage, while in others the surface must be prepared for bonding, assembly or quality control. This completely changes the evaluation of the tube brush, because contact that is sufficient for one function can be insufficient, or excessive, for another.

The choice must also take into account that the real workpiece may not be identical to the initial sample. Small production variations, burrs, more compact residues or differences in material can increase insertion resistance. For this reason, it is better to avoid solutions with no margin, which work only when every condition is ideal. A correctly sized tube brush must have enough tolerance to deal with the normal variability of the process.

Testing on the real workpiece

A tube brush for tubes, holes and cavities should always be tested on the real workpiece or on a representative sample. Drawings are useful, but they do not always show residues, actual tolerances, burrs, roughness, deformation or variations between batches. The test must check not only whether the tube brush enters, but how it works: contact, uniformity, residue exit, possible marks, cycle time and behavior after several passes.

When geometry limits access, the correct choice is the one that reaches the critical point without turning the operation into a risk of blocking or damage. The component must be precise enough to work where needed and robust enough to do so continuously. Only in this way does internal cleaning become a reliable step in the process, not a corrective operation to be managed case by case.
