In automatic machines, the product does not simply have to move from one point to another. It has to reach the right position, with the intended orientation, without impacts, overturning or unnecessary pressure. This is particularly clear when the part is light, flexible, delicate, unstable or subject to small dimensional variations. In these cases, a rigid guide can be too severe, while the absence of guidance leaves the product free to drift, vibrate or accumulate irregularly.

Accompanying means applying a controlled presence, not imposing an absolute constraint. A linear brush can touch, contain, lightly brake, separate or guide the product along a phase of the machine, while leaving a tolerance that a rigid element would not have. Its function is often discreet: it does not transform the process by itself, but it reduces small recurring problems that, over thousands of cycles, become rejects, jams or constant adjustments.

The difference between rigid guidance and flexible guidance

A rigid guide works well when the product has constant geometry, a predictable trajectory and sufficient resistance to contact. If these conditions are missing, the same guide can become a source of friction, marks or blockage. An edge that works on solid parts may damage a lightweight package; a stop that is correct at low speed may become critical when the machine accelerates; containment that is too tight may solve misalignment while increasing stoppages.

A flexible guide, on the other hand, introduces a margin. The filaments can absorb small differences in height, compensate for vibration, maintain distributed contact and reduce the risk of a hard impact. This does not mean that a brush is a universal solution: if the part has to be locked with absolute precision, dedicated devices are needed. But in the phases where the product has to be accompanied, not clamped, flexible contact can make the process more tolerant and more stable.

Where the problem arises in automatic lines

The need for accompaniment often appears at very specific points: entry onto a belt, exit from a station, change of direction, passage under a working unit, lateral containment, separation between closely spaced products, protection of an edge or holding a position before reading, labelling or packaging. The problem may be intermittent and therefore difficult to diagnose: it does not occur at every cycle, but only with certain formats, at certain speeds or when the material varies slightly.

In these cases, increasing the rigidity of the system can make the situation worse. A tighter adjustment may work on one batch and block the next one. Stronger pressure may stabilise the product but leave marks. A higher guide may contain better, but interfere with sensors, nozzles, working heads or pick-up systems. The brush is useful precisely in this intermediate area, where contact is required but constraint is not.

Filaments, density and useful height

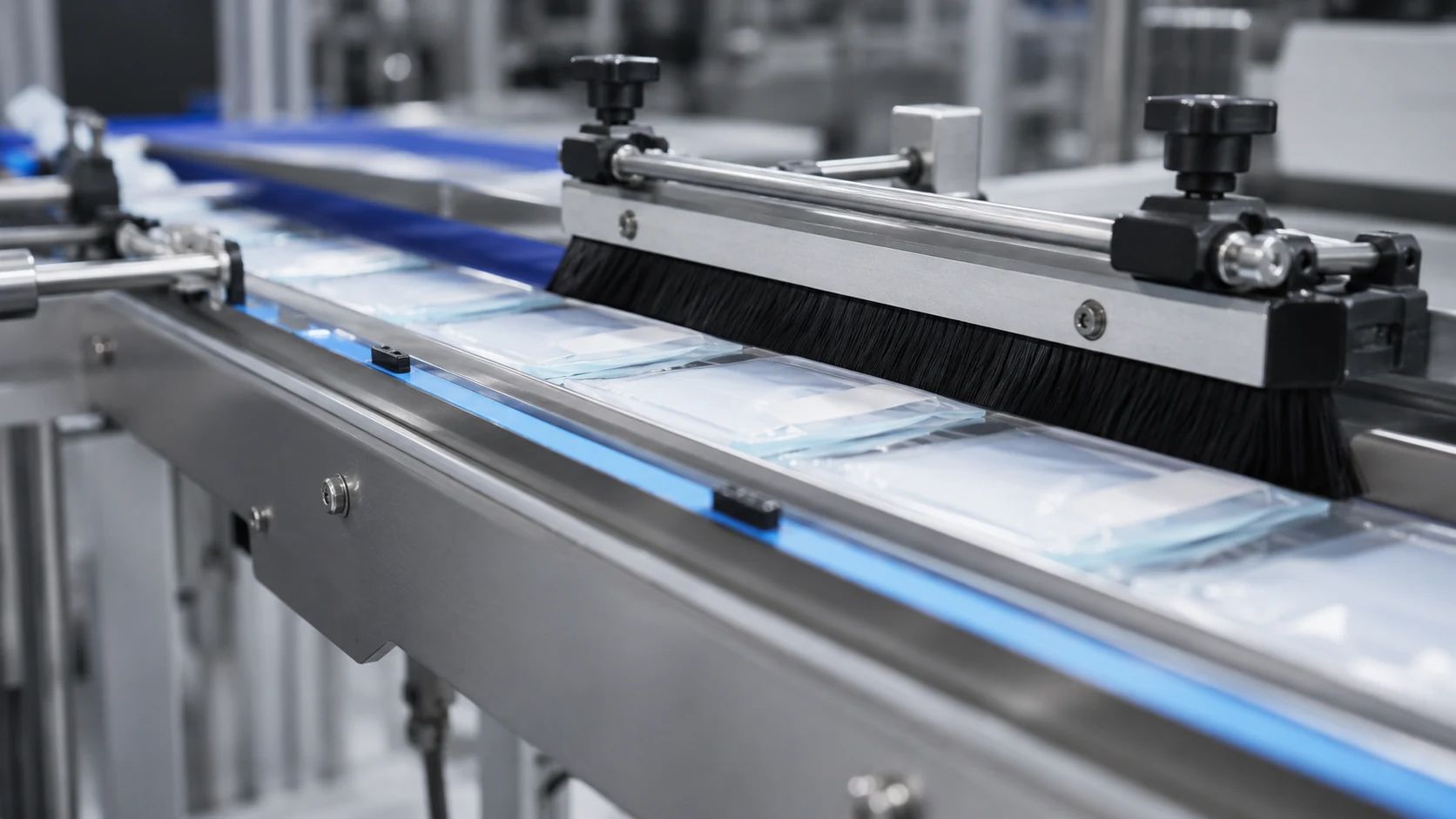

Linear technical brushes make it possible to create continuous contact along a bar or strip, choosing material, density, filament height and arrangement according to the process.

Greater density provides more uniform containment, which is useful when the product has to be accompanied without oscillating. A more open density reduces friction and can help residues or air pass through. The length of the filaments defines how far the brush can flex before it becomes too yielding or too intrusive.

The filament material must also be selected according to the product and the environment. Delicate surfaces require contact that does not mark; in environments with dust or residues, a fibre that does not retain too much dirt may be needed; where electrostatic charges are present, conductive or antistatic materials can prevent problems of dust attraction or product instability. The same linear shape can therefore behave very differently depending on how it is built.

Not only lateral: containing, separating, protecting

The most immediate use is lateral containment, but it is not the only one. A linear brush can protect an area of the machine from dust or splashes, separate two nearby flows, prevent fragments from passing through, accompany a product under a moving unit or act as a flexible barrier at an entry point. In some cases it can also reduce noise and vibration, because contact does not take place against a rigid wall.

The mounting position must be designed with care. If the brush touches too early, it may deflect the product before it has stabilised. If it touches too late, it does not solve the problem. If the pressure is excessive, it creates friction; if it is too low, it does not accompany. The possibility of adjustment is also important: a line that works with several formats may require movements, quick replacements or modular components. Without this attention, the brush risks becoming just another point to be adjusted manually.

When flexible contact improves continuity

The choice makes sense when the defect comes from oscillations, small misalignments, product variations or the need for protection during movement. It is less suitable when the problem requires millimetric positioning, clamping, controlled stopping or synchronisation with actuators. The brush must not replace what has to be mechanically precise; it must make more stable what, by the nature of the product, cannot be treated too rigidly.

Before inserting it into an automatic machine, it is useful to evaluate the product format, the contact surface, speed, position of the defect, available space, presence of sensors, frequency of format changes and cleaning method. When these elements are considered together, flexible contact can reduce stoppages, rejects and corrective adjustments. The machine remains fast, but becomes less brutal in the way it carries the product through the cycle.

Signs that indicate an accompaniment problem

An accompaniment problem does not always appear as an obvious fault. It is often recognised through small signals: products reaching the next station slightly rotated, packages rubbing in the same point, light parts vibrating near a speed change, flexible materials lifting before a contact point, or operators forced to make micro-corrections during the shift. These defects may seem marginal, but they become costly when the line accelerates or when the batch requires greater continuity.

In these cases, overly drastic interventions should be avoided. Adding a rigid stop, narrowing the guides or increasing the pressure of a retaining device may stabilise the part under one condition and create a new problem under another. Flexible contact is useful precisely when variations have to be absorbed without turning them into blockages. The brush can work as a light accompaniment element, keeping the product within an acceptable trajectory without forcing its position.

The check has to be carried out on the real cycle. A component that appears correct at low machine speed may become too soft or too braking at production speed. Likewise, a brush that is effective with a new product may behave differently when the surface is dusty, warm or slightly deformed. The design must therefore consider dynamic behaviour, not just physical clearance at the mounting point.

The relationship with control devices must also be considered. Photoelectric sensors, readers, feelers, gripping units, labelling heads or dosing systems can be sensitive to product position. Soft accompaniment can reduce variability before these points, but only if it does not introduce obstructions where the machine has to operate. The brush must therefore be positioned by also considering what happens immediately afterwards.

When the component is intended to work on different formats, the solution must remain understandable for the department. Markings, position references, simple fixings and recognisable spare parts help keep the adjustment correct over time. If every format change requires interpretation, the initial benefit is lost. The quality of accompaniment also depends on how easily the machine can return to the same setting after an adjustment.
